ACPL-072L-560
Broadcom Limited
Broadcom Limited
OPTOISO 3.75KV PUSH PULL 8SO
$0.00
Available to order
Reference Price (USD)
1,500+
$2.81960
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with Broadcom Limited ACPL-072L-560 Optoisolators - Logic Output. These isolators deliver high-speed, reliable signal isolation with low power consumption and excellent thermal stability, ideal for applications in HVAC, lighting controls, and security systems. Trust Broadcom Limited for innovative solutions. Send us your requirements today!
Specifications
- Product Status: Discontinued at Digi-Key
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 3750Vrms
- Common Mode Transient Immunity (Min): 10kV/µs
- Input Type: Logic
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 10 mA
- Data Rate: 25MBd
- Propagation Delay tpLH / tpHL (Max): 40ns, 40ns
- Rise / Fall Time (Typ): 9ns, 8ns
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Supply: 3V ~ 3.6V, 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Surface Mount

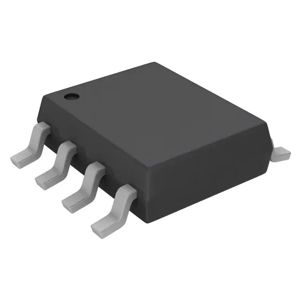

- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SO Tall
