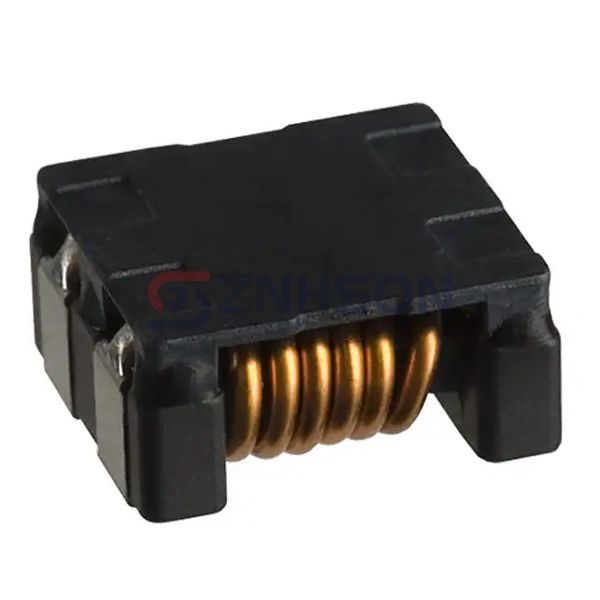

ACM1211-701-2PL-TL01
TDK Corporation
TDK Corporation
CMC 8A 2LN 700 OHM SMD
$2.25
Available to order
Reference Price (USD)
500+
$1.18800
1,000+
$1.08900
2,500+
$1.05600
5,000+
$1.02300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TDK Corporation ACM1211-701-2PL-TL01 Common Mode Choke is a top-tier solution in our Filters lineup, providing exceptional EMI filtering and signal integrity. Key features include high impedance, low insertion loss, and temperature stability. Applications include power converters, USB interfaces, and audio equipment. Ready to integrate this into your project? Send us your inquiry now!
Specifications
- Product Status: Active
- Filter Type: Power Line
- Number of Lines: 2
- Impedance @ Frequency: 700 Ohms @ 100 MHz
- Inductance @ Frequency: -
- Current Rating (Max): 8A
- DC Resistance (DCR) (Max): 6mOhm
- Voltage Rating - DC: 80V
- Voltage Rating - AC: -
- Operating Temperature: -40°C ~ 85°C
- Ratings: -
- Approval Agency: -
- Features: -
- Mounting Type: Surface Mount
- Size / Dimension: 0.472" L x 0.433" W (12.00mm x 11.00mm)
- Height (Max): 0.236" (6.00mm)
- Package / Case: Horizontal, 4 PC Pad
