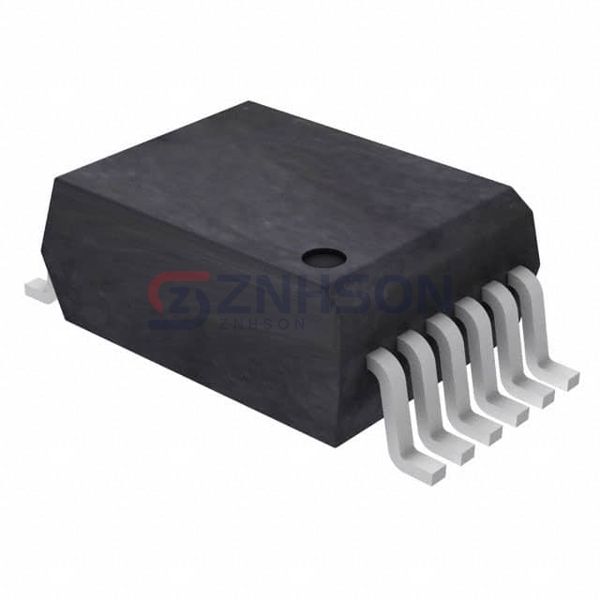

ACFL-5211T-560E
Broadcom Limited
Broadcom Limited
OPTOISO 5KV 2CH TRANS
$2.93
Available to order
Reference Price (USD)
2,000+
$2.37150
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your system's efficiency with ACFL-5211T-560E Optoisolators by Broadcom Limited, designed for Photovoltaic Output applications. These isolators are perfect for isolating digital signals, protecting microcontrollers, and ensuring safe operation in high-voltage environments. Suitable for consumer electronics, aerospace, and defense applications, they deliver consistent performance under extreme conditions. Get started today contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Number of Channels: 2
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 32% @ 10mA
- Current Transfer Ratio (Max): 100% @ 10mA
- Turn On / Turn Off Time (Typ): 150ns, 500ns
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 20V
- Current - Output / Channel: 8mA
- Voltage - Forward (Vf) (Typ): 1.55V
- Current - DC Forward (If) (Max): 20 mA
- Vce Saturation (Max): -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 12-BSOP (0.295", 7.50mm Width)
- Supplier Device Package: 12-SO
