951113-7622-AR
3M
3M
CONN HEADER R/A 13POS 2MM
$1.37
Available to order
Reference Price (USD)
1+
$1.41000
10+
$1.25800
25+
$1.19080
50+
$1.14580
100+
$1.10070
250+
$1.01088
500+
$0.92102
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

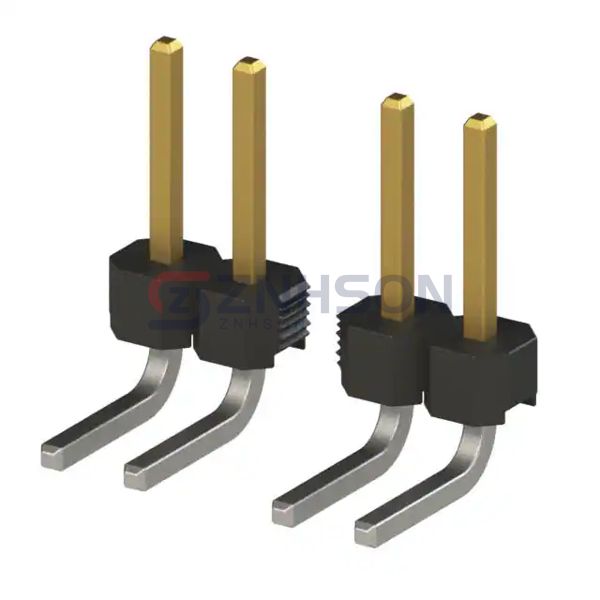

The 951113-7622-AR 3M Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 13
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.173" (4.40mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.079" (2.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: -
