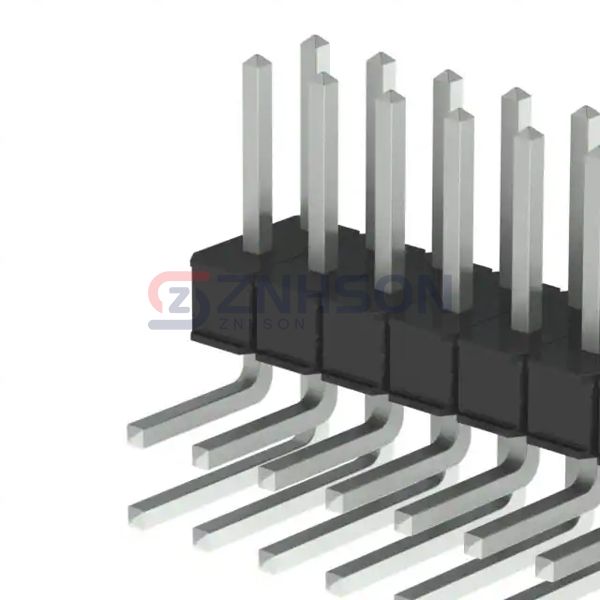

929838-04-11
3M
3M
CONN HEADER R/A 22POS 2.54MM
$2.05
Available to order
Reference Price (USD)
1+
$1.95000
10+
$1.76800
25+
$1.65960
50+
$1.58760
100+
$1.51540
250+
$1.37104
500+
$1.26280
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929838-04-11 3M Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 22
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.145" (3.68mm)
- Overall Contact Length: -
- Insulation Height: 0.215" (5.45mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin-Lead
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
4-826631-4
Samtec Inc.
FTSH-108-01-SM-DV-A
Samtec Inc.
TSM-105-02-T-SV-002
Amphenol ICC (FCI)
68464-104HLF
Samtec Inc.
TSM-115-01-T-DH
Hirose Electric Co Ltd
HIF3FC-50PA-2.54DSA(71)
Hirose Electric Co Ltd

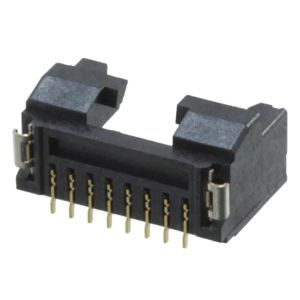

DF50A-8P-1V(51)
Samtec Inc.

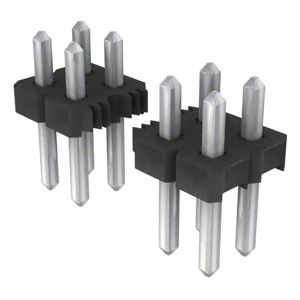

TLW-111-05-T-D
Samtec Inc.

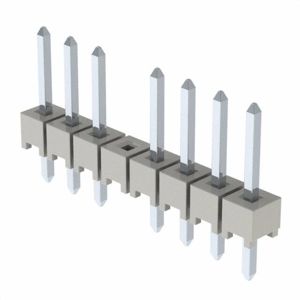

HTSW-108-07-T-S-005
