929836-08-19-RK
3M

3M
CONN HEADER VERT 38POS 2.54MM
$2.59
Available to order
Reference Price (USD)
1+
$2.46000
10+
$2.23400
25+
$2.09760
50+
$2.00640
100+
$1.91520
250+
$1.73280
500+
$1.59600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

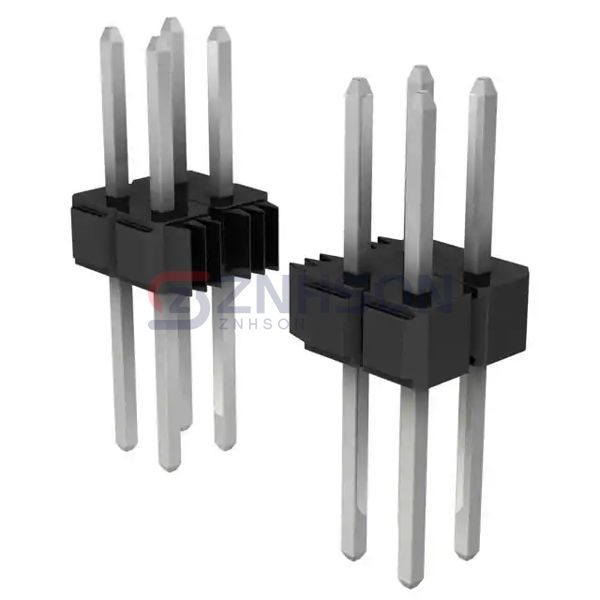

The 929836-08-19-RK 3M Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 38
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.310" (7.87mm)
- Overall Contact Length: 0.645" (16.38mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
