929700-01-03-RK
3M
3M

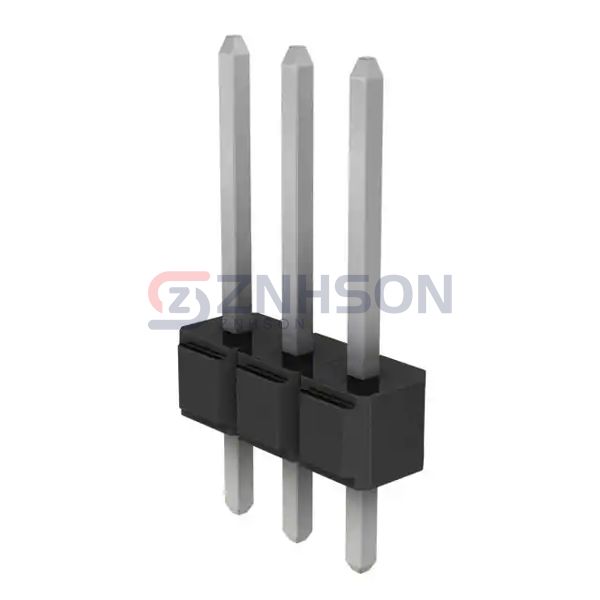

CONN HEADER VERT 3POS 2.54MM
$0.39
Available to order
Reference Price (USD)
1+
$0.37000
10+
$0.34700
25+
$0.29760
50+
$0.25300
100+
$0.24300
250+
$0.21824
500+
$0.20832
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929700-01-03-RK 3M Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.528" (13.42mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Molex
171814-1005
Samtec Inc.
FTSH-125-04-S-DV-A
Samtec Inc.
FTSH-140-02-F-DV
Samtec Inc.
TMM-149-01-T-D-SM
Preci-Dip

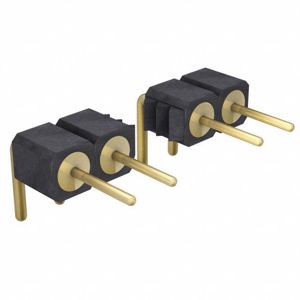

399-10-158-10-009101
Preci-Dip

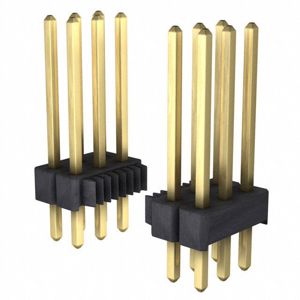

894-70-018-10-004101
Samtec Inc.

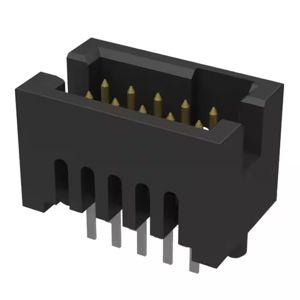

TFC-105-21-L-D-A
Adam Tech
2PH1R-19-UA
Samtec Inc.

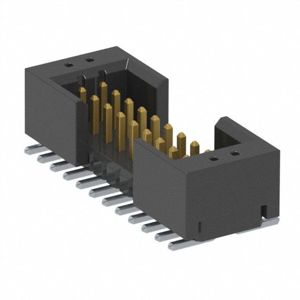

FTM-108-03-L-DV-S-P
