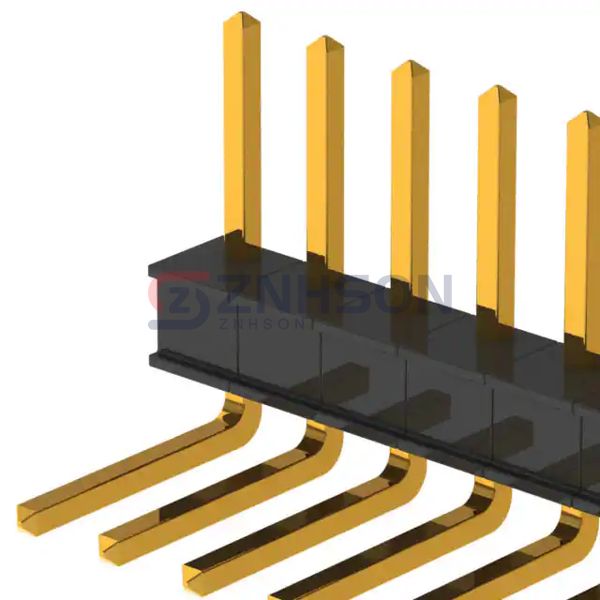

929648-04-31-EU

Specifications

• Product Status: Active
• Connector Type: Header, Breakaway
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 31
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Board
• Shrouding: Unshrouded
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.235" (5.97mm)
• Contact Length - Post: 0.225" (5.72mm)
• Overall Contact Length: -
• Insulation Height: 0.115" (2.92mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 10.0µin (0.25µm)
• Contact Finish - Post: Gold
• Contact Material: Copper Alloy
• Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
• Features: -
• Operating Temperature: -40°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 2.5A
• Voltage Rating: -
