929647-09-18-I
3M
3M
CONN HEADER VERT 18POS 2.54MM
$5.78
Available to order
Reference Price (USD)
1+
$5.51000
10+
$5.28800
25+
$4.84720
50+
$4.62680
100+
$4.40640
250+
$3.85560
500+
$3.74544
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with 929647-09-18-I 3M Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.145" (3.68mm)
- Overall Contact Length: 0.480" (12.19mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-128-01-T-S
Samtec Inc.
TMM-108-01-T-S-SM-P
Mill-Max Manufacturing Corp.
335-40-114-00-160000
Samtec Inc.
FTSH-109-04-L-D
Samtec Inc.
TSM-110-01-L-DV-A-P
Samtec Inc.
FTSH-108-01-S-DV-K
Amphenol ICC (FCI)
77311-102-35LF
Hirose Electric Co Ltd
A3A-24PA-2SV(71)

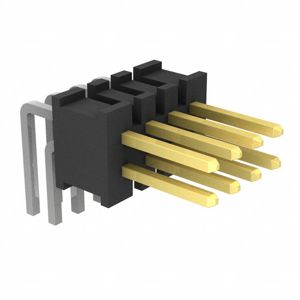

Samtec Inc.
