929647-05-02-EU
3M
3M

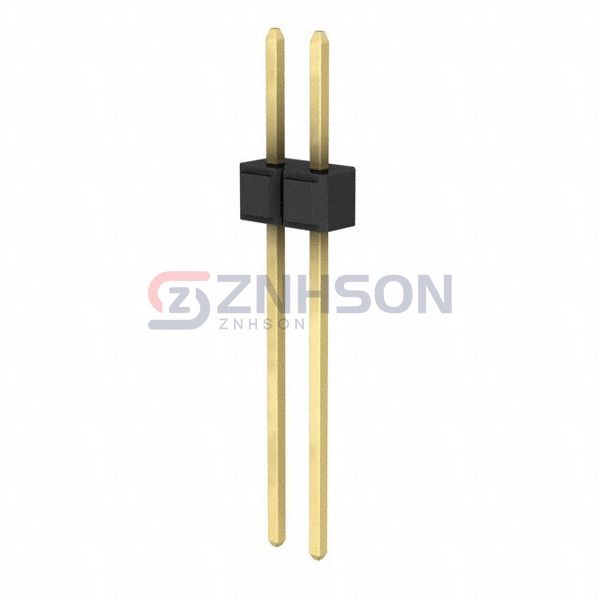

CONN HEADER VERT 2POS 2.54MM
$0.64
Available to order
Reference Price (USD)
1+
$0.61000
10+
$0.57000
25+
$0.51280
50+
$0.45560
100+
$0.43670
250+
$0.39872
500+
$0.37974
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with 929647-05-02-EU 3M Rectangular Connectors - Headers, Male Pins. These connectors provide excellent electrical performance, secure locking mechanisms, and space-saving designs. Suitable for industrial machinery, consumer electronics, and more. Ready to order? Send us your inquiry and we'll respond swiftly!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.610" (15.49mm)
- Overall Contact Length: 0.945" (24.00mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
