9-146285-0-26
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 26POS 2.54MM
$3.64
Available to order
Reference Price (USD)
1+
$3.37000
10+
$3.23100
25+
$2.96200
50+
$2.82740
100+
$2.69280
250+
$2.35624
500+
$2.28892
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality 9-146285-0-26 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins, designed for reliable and secure connections in various electronic applications. These connectors feature durable construction, excellent conductivity, and easy installation, making them ideal for industrial, automotive, and consumer electronics. Whether you need robust headers or precision male pins, our products ensure optimal performance. Contact us today for a quote and let us meet your connectivity needs!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 0.410" (10.41mm)
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Preci-Dip
894-80-093-10-001101
TE Connectivity AMP Connectors
2-647141-4
Samtec Inc.
TMM-106-01-T-D-SM-A-P-TR
Samtec Inc.
FTM-117-03-F-DV
Amphenol ICC (FCI)
75160-102-06LF
Samtec Inc.
BBL-102-G-F
TE Connectivity AMP Connectors
1-2842243-6
TE Connectivity AMP Connectors

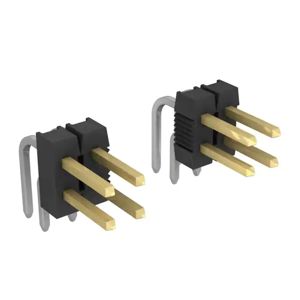

9-146308-0-38
Samtec Inc.

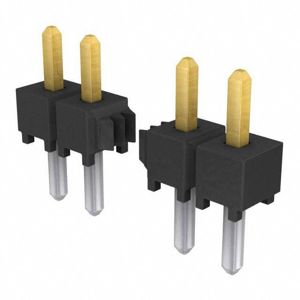

TSW-105-05-L-S
