9-146256-0-07
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 14POS 2.54MM
$1.43
Available to order
Reference Price (USD)
1+
$1.42000
10+
$1.24700
25+
$1.17360
50+
$1.12480
100+
$1.07600
250+
$0.97816
500+
$0.88034
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 9-146256-0-07 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust TE Connectivity AMP Connectors for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.440" (11.18mm)
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Preci-Dip
802-80-046-20-001101
Amphenol ICC (FCI)
77313-124-44LF
Amphenol ICC (FCI)
68021-430HLF
Preci-Dip
350-10-114-00-012101
TE Connectivity AMP Connectors
9-146276-0-17
Amphenol ICC (FCI)
77311-827-34LF
Amphenol Sine Systems Corp
ATM15-6P-BM01
TE Connectivity AMP Connectors

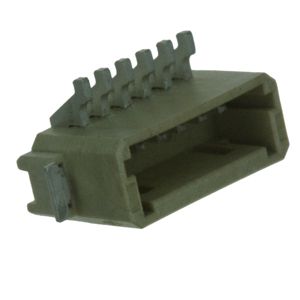

2106091-5
