861400162YO1LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

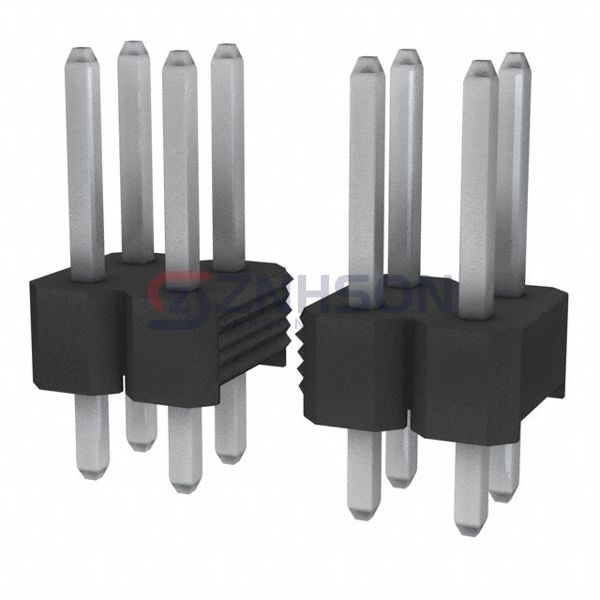

CONN HEADER VERT 16POS 2.54MM
$0.19
Available to order
Reference Price (USD)
12,000+
$0.15714
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 861400162YO1LF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.276" (7.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.496" (12.60mm)
- Insulation Height: 0.102" (2.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -40°C ~ 100°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): 3A
- Voltage Rating: 500V
