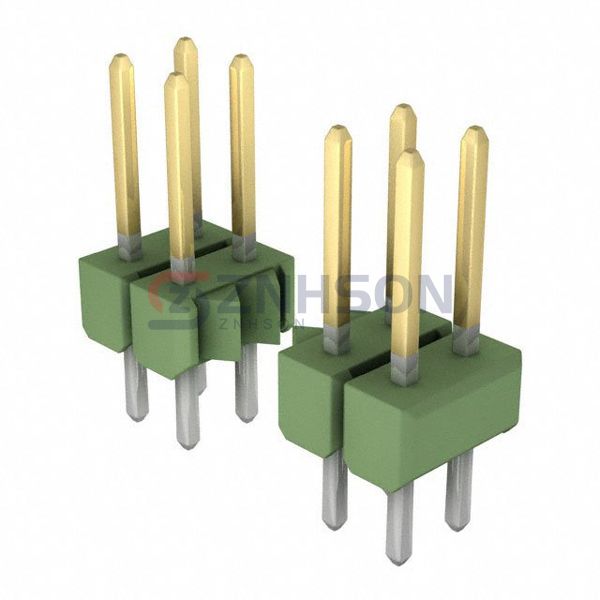

829114-8

Specifications

• Product Status: Discontinued at Digi-Key
• Connector Type: Header, Breakaway
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 16
• Number of Rows: 2
• Row Spacing - Mating: 0.100" (2.54mm)
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Unshrouded
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.177" (4.50mm)
• Contact Length - Post: 0.114" (2.90mm)
• Overall Contact Length: 0.358" (9.09mm)
• Insulation Height: 0.067" (1.70mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 3.90µin (0.099µm)
• Contact Finish - Post: Tin
• Contact Material: Phosphor Bronze
• Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
• Features: -
• Operating Temperature: -65°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: -
• Insulation Color: Green
• Current Rating (Amps): 5A
• Voltage Rating: -
