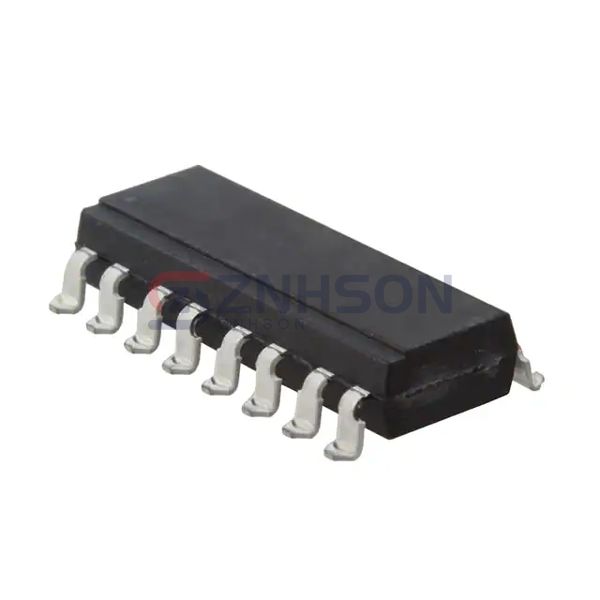

8102801TA
Broadcom Limited
Broadcom Limited
OPTOISO 1.5KV OPEN COLL 16SMD GW
$99.15
Available to order
Reference Price (USD)
40+
$86.86625
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Broadcom Limited 8102801TA Optoisolators - Logic Output offer reliable and efficient signal isolation for modern electronics. With features like wide voltage range, high-speed switching, and compact form factor, they are ideal for use in automotive, industrial, and consumer electronics. Elevate your designs with Broadcom Limited's quality. Request more information now!
Specifications
- Product Status: Active
- Number of Channels: 2
- Inputs - Side 1/Side 2: 2/0
- Voltage - Isolation: 1500VDC
- Common Mode Transient Immunity (Min): 1kV/µs
- Input Type: DC
- Output Type: Open Collector, Schottky Clamped
- Current - Output / Channel: 25 mA
- Data Rate: 10MBd
- Propagation Delay tpLH / tpHL (Max): 100ns, 100ns
- Rise / Fall Time (Typ): 35ns, 35ns
- Voltage - Forward (Vf) (Typ): 1.55V
- Current - DC Forward (If) (Max): 20mA
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 16-SMD, Gull Wing
- Supplier Device Package: 16-SMD Gull Wing
