804-10-069-10-002000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

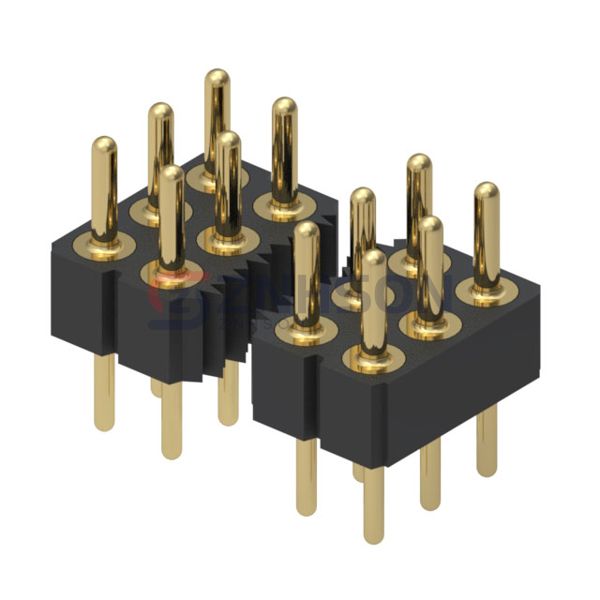

CONN HEADER VERT 69POS 2.54MM
$14.85
Available to order
Reference Price (USD)
1+
$13.46000
10+
$12.23400
25+
$11.92800
50+
$11.01040
100+
$10.39860
250+
$9.48112
500+
$8.86944
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with 804-10-069-10-002000 Mill-Max Manufacturing Corp. Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 69
- Number of Rows: 3
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.142" (3.61mm)
- Contact Length - Post: 0.133" (3.38mm)
- Overall Contact Length: 0.400" (10.16mm)
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Brass Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
