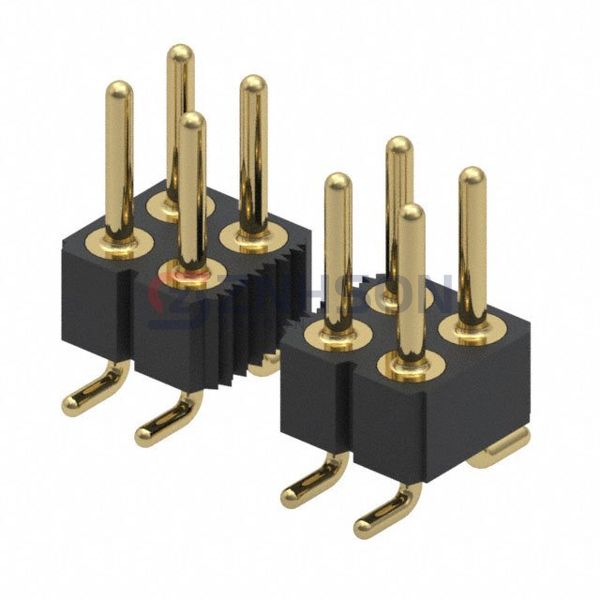

802-10-022-30-001000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN HEADER SMD 22POS 2.54MM
$9.97
Available to order
Reference Price (USD)
1+
$8.14000
10+
$7.80000
25+
$7.12160
50+
$6.78260
100+
$6.44350
250+
$5.76520
500+
$5.42608
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 802-10-022-30-001000 Mill-Max Manufacturing Corp. Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Mill-Max Manufacturing Corp. difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 22
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.195" (4.95mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Brass Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
