76384-405LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

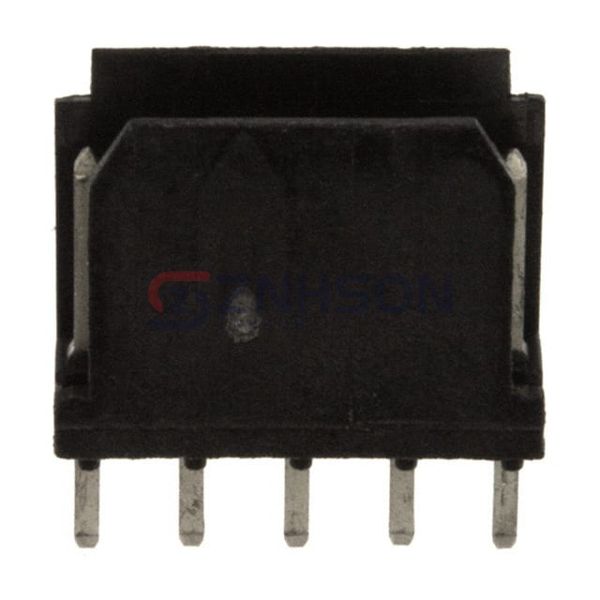

CONN HEADER VERT 5POS 2.54MM
$0.93
Available to order
Reference Price (USD)
1+
$0.76000
10+
$0.66800
100+
$0.57660
500+
$0.47178
1,000+
$0.41936
5,000+
$0.36694
10,000+
$0.34859
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 76384-405LF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.197" (5.00mm)
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: 0.411" (10.44mm)
- Insulation Height: 0.368" (9.35mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 78.7µin (2.00µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
