75160-120-36LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 36POS 2.54MM
$5.06
Available to order
Reference Price (USD)
100+
$3.93720
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with 75160-120-36LF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 36
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.605" (15.37mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.825" (20.95mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -65°C ~ 130°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 5A
- Voltage Rating: 110V
Related Products
Amphenol ICC (FCI)
77313-422-24LF
Samtec Inc.
TMM-116-01-SM-D
Samtec Inc.
TSW-130-05-T-S
Mill-Max Manufacturing Corp.
800-90-064-62-001000
Samtec Inc.
TSW-118-14-S-D
Molex
22-12-2204
Molex
2170630075
TE Connectivity AMP Connectors
9-146281-0-10
Samtec Inc.

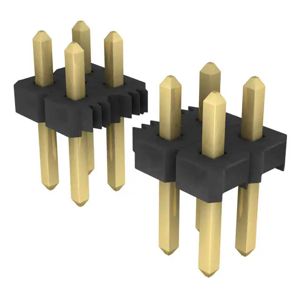

TLW-133-05-G-D
