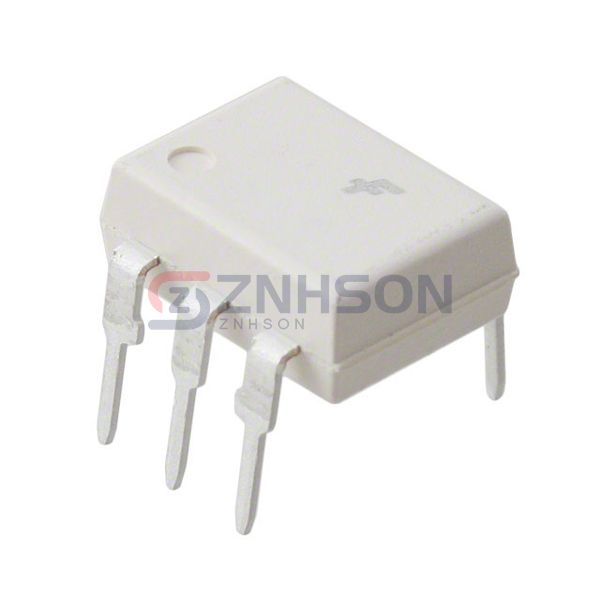

74OL6010
onsemi
onsemi
OPTOISO 5.3KV OPN COLLECTOR 6DIP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with onsemi 74OL6010 Optoisolators - Logic Output. These isolators deliver high-speed, reliable signal isolation with low power consumption and excellent thermal stability, ideal for applications in HVAC, lighting controls, and security systems. Trust onsemi for innovative solutions. Send us your requirements today!
Specifications
- Product Status: Obsolete
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 5300Vrms
- Common Mode Transient Immunity (Min): 5kV/µs
- Input Type: Logic
- Output Type: Open Collector, Schottky Clamped
- Current - Output / Channel: 40 mA
- Data Rate: 15MBd
- Propagation Delay tpLH / tpHL (Max): 180ns, 120ns
- Rise / Fall Time (Typ): 50ns, 5ns
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Supply: 4.5V ~ 15V
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Through Hole
- Package / Case: 6-DIP (0.300", 7.62mm)
- Supplier Device Package: 6-DIP
