74HCT109D-Q100J
Nexperia USA Inc.
Nexperia USA Inc.
IC FF JK TYPE DUAL 1BIT 16SO
$0.68
Available to order
Reference Price (USD)
2,500+
$0.19484
5,000+
$0.18227
12,500+
$0.16970
25,000+
$0.16090
62,500+
$0.15712
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 74HCT109D-Q100J Logic Flip Flops by Nexperia USA Inc. provide dependable operation for your digital systems. Key features include edge-triggered functionality, minimal propagation delay, and compatibility with TTL/CMOS interfaces. Applications range from microprocessor systems to embedded controllers. Submit your inquiry to receive detailed specifications!
Specifications
- Product Status: Active
- Function: Set(Preset) and Reset
- Type: JK Type
- Output Type: Complementary
- Number of Elements: 2
- Number of Bits per Element: 1
- Clock Frequency: 81 MHz
- Max Propagation Delay @ V, Max CL: 35ns @ 4.5V, 50pF
- Trigger Type: Positive Edge
- Current - Output High, Low: 5.2mA, 5.2mA
- Voltage - Supply: 4.5V ~ 5.5V
- Current - Quiescent (Iq): 4 µA
- Input Capacitance: 3.5 pF
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: 16-SO
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
Related Products
Texas Instruments
SN74ABTH16823DLR
onsemi
MC74ACT174MEL
Texas Instruments
SN74LVTH273DBR
Texas Instruments
SN74AUC1G79YZPR
National Semiconductor
74173PC
Texas Instruments
CY74FCT162374TPVC
onsemi
MC10EL51DG
onsemi

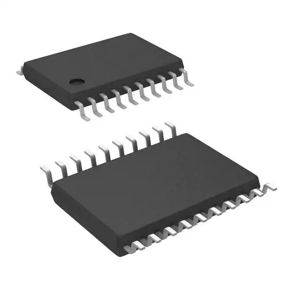

MC74HC273ADTG
Nexperia USA Inc.

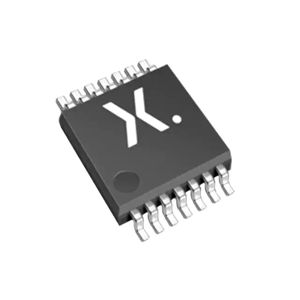

74LV74PW-Q100J
