744870220
Würth Elektronik
Würth Elektronik

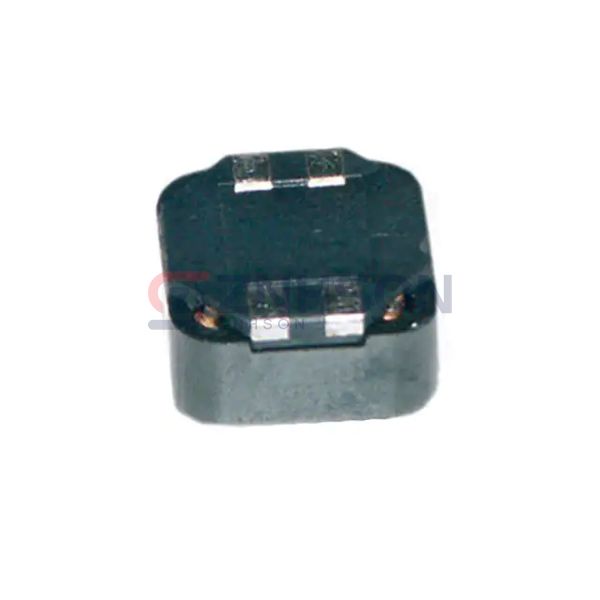

INDUCT ARRAY 2 COIL 22UH SMD
$2.99
Available to order
Reference Price (USD)
1+
$2.99000
500+
$2.9601
1000+
$2.9302
1500+
$2.9003
2000+
$2.8704
2500+
$2.8405
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with 744870220 Würth Elektronik Inductors, Coils, and Chokes, specifically designed for Arrays and Signal Transformers. These components offer high reliability, low DCR, and superior frequency response, making them suitable for telecommunications and computing applications. For more information or to place an order, reach out to our sales team now!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 22 µH
- Inductance - Connected In Series: 88 µH
- Tolerance: ±20%
- Current Rating - Parallel: 2.45 A
- Current Rating - Series: 1.225 A
- Current Saturation - Parallel: 5.2 A
- Current Saturation - Series: 2.6 A
- DC Resistance (DCR) - Parallel: 80mOhm Max
- DC Resistance (DCR) - Series: -
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height: 0.335" (8.50mm)
