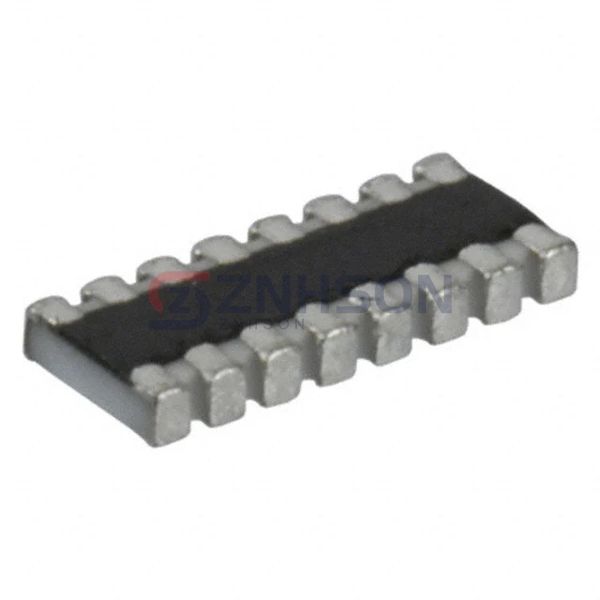

741X1635600FP
CTS Resistor Products
CTS Resistor Products
RES ARRAY 8 RES 560 OHM 1506
$0.11
Available to order
Reference Price (USD)
5,000+
$0.07229
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with CTS Resistor Products's 741X1635600FP resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every 741X1635600FP unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Isolated
- Resistance (Ohms): 560
- Tolerance: ±1%
- Number of Resistors: 8
- Resistor Matching Ratio: -
- Resistor-Ratio-Drift: -
- Number of Pins: 16
- Power Per Element: 62.5mW
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature: -55°C ~ 125°C
- Applications: -
- Mounting Type: Surface Mount
- Package / Case: 1506, Convex, Long Side Terminals
- Supplier Device Package: -
- Size / Dimension: 0.156" L x 0.063" W (3.95mm x 1.60mm)
- Height - Seated (Max): 0.022" (0.55mm)
