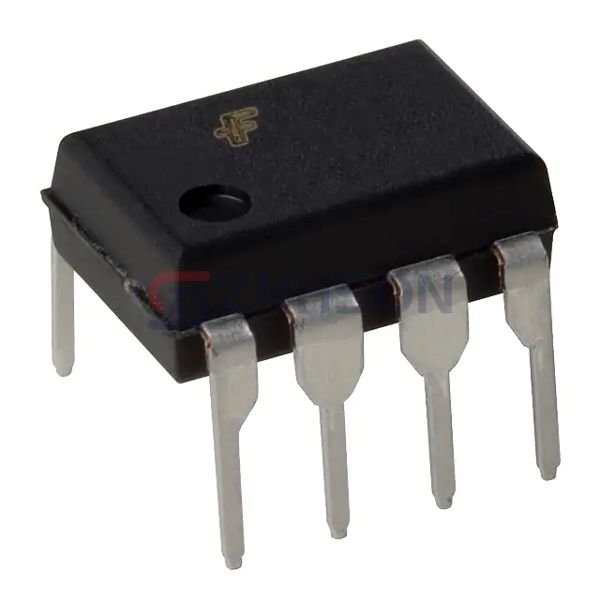

6N135VM
Fairchild Semiconductor
Fairchild Semiconductor
HIGH SPEED TRANSISTOR OPTOCOUPLE
$0.71
Available to order
Reference Price (USD)
1,000+
$0.83838
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience superior signal isolation with Fairchild Semiconductor's 6N135VM Optoisolators - Transistor, Photovoltaic Output. These components are ideal for data acquisition, process control, and safety systems, offering fast response times and high insulation resistance. With Fairchild Semiconductor's commitment to innovation, you can expect cutting-edge solutions for your technical challenges. Reach out now to request a quote and elevate your designs!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 7% @ 16mA
- Current Transfer Ratio (Max): 50% @ 16mA
- Turn On / Turn Off Time (Typ): 230ns, 450ns
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 20V
- Current - Output / Channel: 8mA
- Voltage - Forward (Vf) (Typ): 1.45V
- Current - DC Forward (If) (Max): 25 mA
- Vce Saturation (Max): -
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
