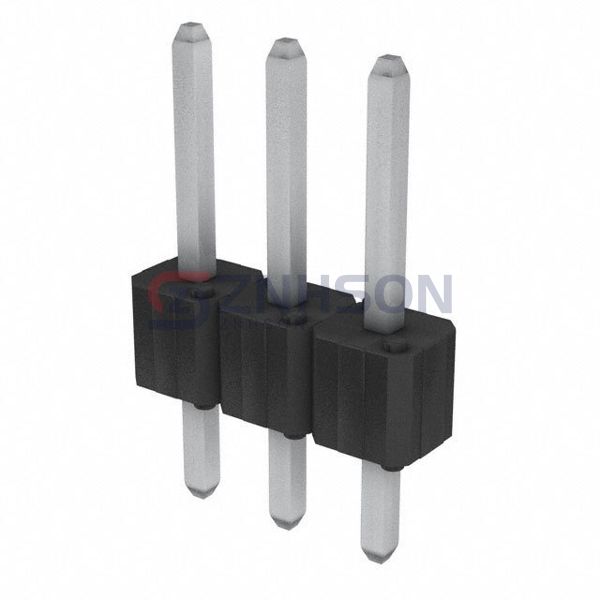

68001-403HLF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 3POS 2.54MM
$0.24
Available to order
Reference Price (USD)
1+
$0.19000
10+
$0.17900
100+
$0.12690
500+
$0.10872
1,000+
$0.09060
5,000+
$0.08154
10,000+
$0.07475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with 68001-403HLF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.450" (11.43mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: -
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
Molex
0039294029
Samtec Inc.
TSM-110-02-SM-DV
Amphenol ICC (FCI)
77311-115-36LF
Samtec Inc.
TSW-115-06-S-S
Sullins Connector Solutions
PREC040SAEN-RC
TE Connectivity AMP Connectors
9-146308-0-02
Sullins Connector Solutions
SBH11-PBPC-D20-ST-BK
Samtec Inc.

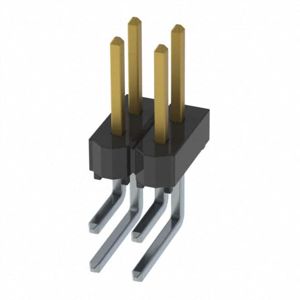

HTSW-102-08-SM-D-RA
