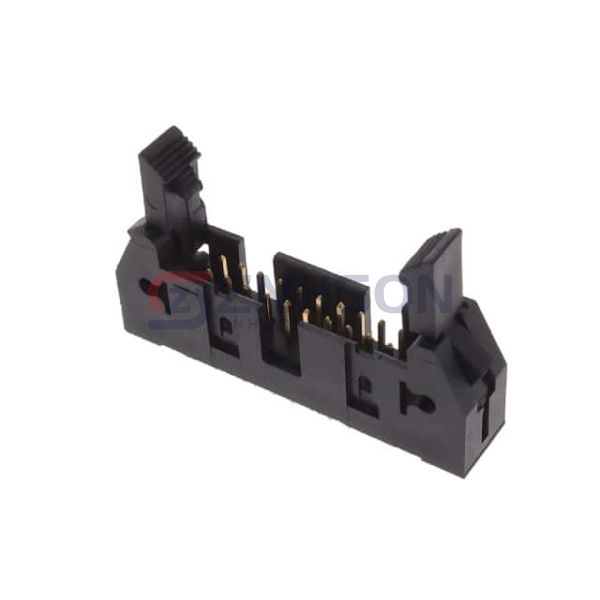

65863-069LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 20POS 2.54MM
$3.19
Available to order
Reference Price (USD)
1+
$2.74000
10+
$2.50500
400+
$1.98513
800+
$1.79608
1,200+
$1.60701
5,200+
$1.44631
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 65863-069LF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.150" (3.81mm)
- Overall Contact Length: -
- Insulation Height: 0.640" (16.26mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: Keying Slot
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-105-01-T-DV-LC
Harwin Inc.
M30-6001546
TE Connectivity AMP Connectors
1-5103311-2
Molex
0877594250
Samtec Inc.
MMT-110-01-L-DH-P-TR
Samtec Inc.
TSM-150-01-L-SH
Samtec Inc.
ZSS-105-09-S-D-1240
Preci-Dip
800-80-020-30-001101
Samtec Inc.

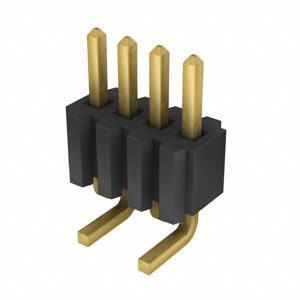

FTR-104-02-G-S
