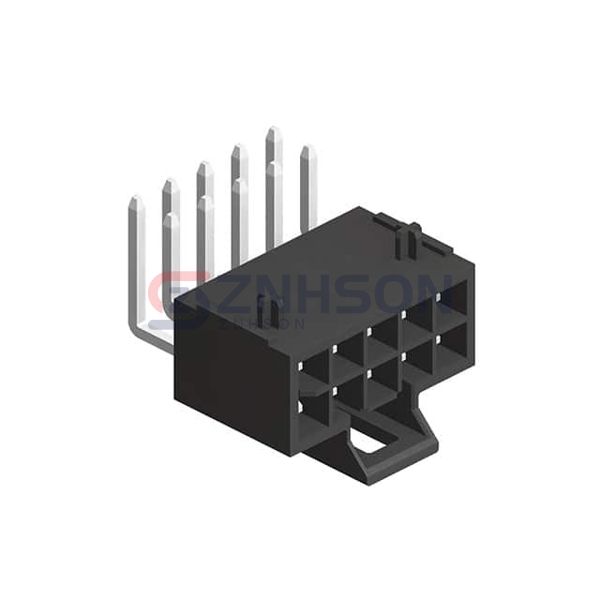

54025-10-0200-01
CNC Tech
CNC Tech
WIRE-TO BOARD HEADER, 2.5MM, 10
$0.97
Available to order
Reference Price (USD)
1+
$0.97000
500+
$0.9603
1000+
$0.9506
1500+
$0.9409
2000+
$0.9312
2500+
$0.9215
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 54025-10-0200-01 CNC Tech Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.098" (2.50mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.247" (6.28mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 6.5A (AC/DC)
- Voltage Rating: 250VAC/DC
Related Products
Molex
0416710041
Preci-Dip
499-V3-244-10-009101
Preci-Dip
890-18-006-10-003101
Preci-Dip
892-70-060-20-002101
Sullins Connector Solutions
PRPC004DFBN-RC
Preci-Dip
894-70-099-10-001101
Samtec Inc.

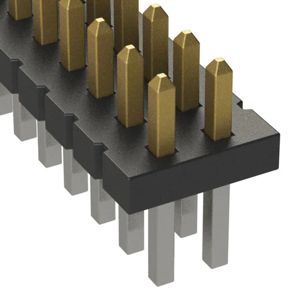

FTS-110-02-FM-D
Samtec Inc.

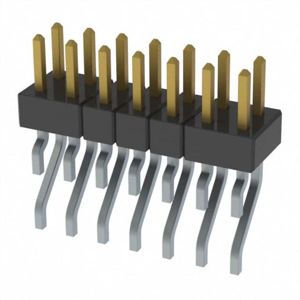

MMT-107-01-S-DH-K
