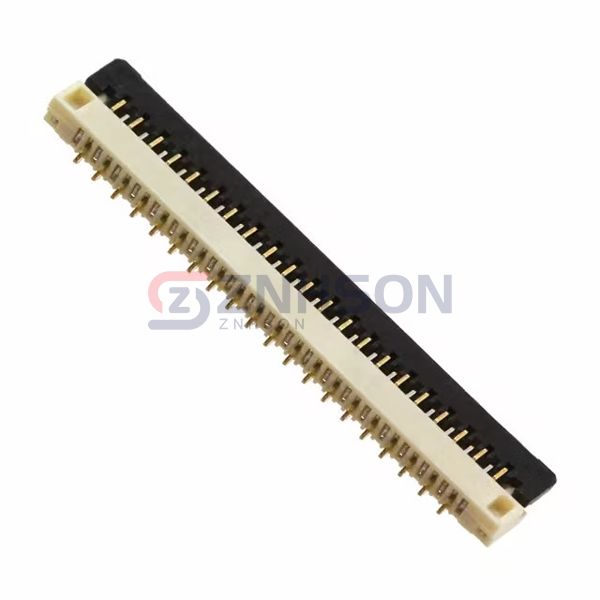

503566-4100
Molex
Molex
CONN FPC BOTTOM 41POS 0.30MM R/A
$2.57
Available to order
Reference Price (USD)
1+
$2.57000
500+
$2.5443
1000+
$2.5186
1500+
$2.4929
2000+
$2.4672
2500+
$2.4415
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality 503566-4100 FFC/FPC Connectors from Molex, designed for reliable and flexible electronic connections. These connectors are perfect for applications requiring compact and efficient signal transmission. With features like easy installation and durable construction, they are ideal for consumer electronics, automotive systems, and industrial equipment. Interested in learning more? Contact us today for a quote!
Specifications
- Product Status: Obsolete
- Flat Flex Type: FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 41
- Pitch: 0.012" (0.30mm)
- Termination: Solder
- FFC, FCB Thickness: 0.20mm
- Height Above Board: 0.037" (0.95mm)
- Locking Feature: Flip Lock
- Cable End Type: Tabbed
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
- Actuator Material: Polyamide (PA), Nylon, Glass Filled
- Features: Solder Retention
- Voltage Rating: 50V
- Operating Temperature: -40°C ~ 85°C
- Material Flammability Rating: UL94 V-0, UL94 HB
