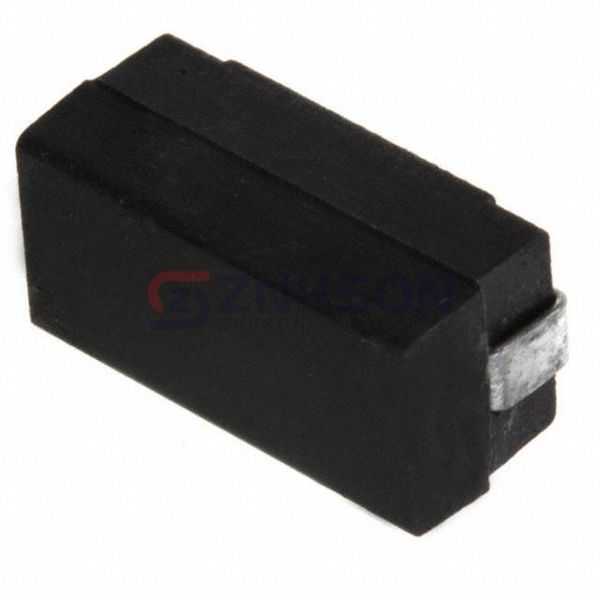

5022-564G
API Delevan Inc.
API Delevan Inc.
FIXED IND 560UH 136MA 19.5OHM SM
$5.42
Available to order
Reference Price (USD)
800+
$3.92550
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your circuits with 5022-564G Fixed Inductors from API Delevan Inc., designed for efficiency and reliability. These inductors feature low core losses, high impedance, and excellent noise suppression, making them ideal for telecommunications, automotive electronics, and renewable energy solutions. 5022-564G ensures top-notch performance. Have questions about specifications? Reach out to us for detailed information!
Specifications
- Product Status: Active
- Type: -
- Material - Core: Iron
- Inductance: 560 µH
- Tolerance: ±2%
- Current Rating (Amps): 136 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 19.5Ohm Max
- Q @ Freq: 65 @ 790kHz
- Frequency - Self Resonant: 3.8MHz
- Ratings: -
- Operating Temperature: -55°C ~ 125°C
- Inductance Frequency - Test: 790 kHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Supplier Device Package: -
- Size / Dimension: 0.520" L x 0.250" W (13.21mm x 6.35mm)
- Height - Seated (Max): 0.230" (5.80mm)
