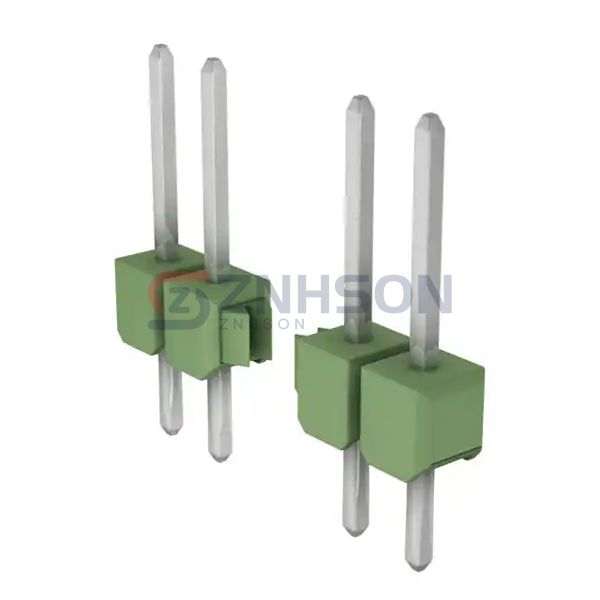

5-828214-0

Specifications

• Product Status: Active
• Connector Type: Header, Breakaway
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 50
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Unshrouded
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.264" (6.70mm)
• Contact Length - Post: 0.126" (3.20mm)
• Overall Contact Length: 0.500" (12.70mm)
• Insulation Height: 0.110" (2.79mm)
• Contact Shape: Square
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: 78.7µin (2.00µm)
• Contact Finish - Post: Tin
• Contact Material: Copper Alloy
• Insulation Material: Polybutylene Terephthalate (PBT)
• Features: -
• Operating Temperature: -
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Green
• Current Rating (Amps): -
• Voltage Rating: -
