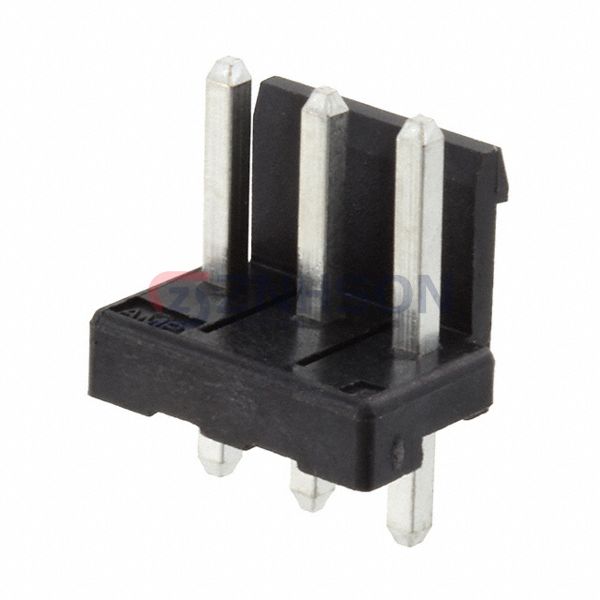

5-1123723-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 3POS 3.96MM
$0.34
Available to order
Reference Price (USD)
1+
$0.21000
10+
$0.19300
100+
$0.12190
500+
$0.10218
1,000+
$0.09039
5,000+
$0.07860
10,000+
$0.07664
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 5-1123723-3 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust TE Connectivity AMP Connectors for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: 0.146" (3.70mm)
- Overall Contact Length: 0.567" (14.40mm)
- Insulation Height: 0.118" (3.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: -
- Operating Temperature: -25°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 7.5A
- Voltage Rating: 250VAC
Related Products
Samtec Inc.
TMM-132-01-S-D-RA
TE Connectivity AMP Connectors
5-146129-1
Samtec Inc.
ZSS-110-07-L-D-1040
TE Connectivity AMP Connectors
1-2132415-8
Mill-Max Manufacturing Corp.
449-10-242-00-560000
Samtec Inc.
FTSH-125-01-FM-DH
Preci-Dip
351-80-136-00-005101
JST Sales America Inc.

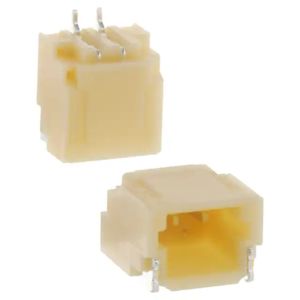

SM02B-SRSS-TB(LF)(SN)
