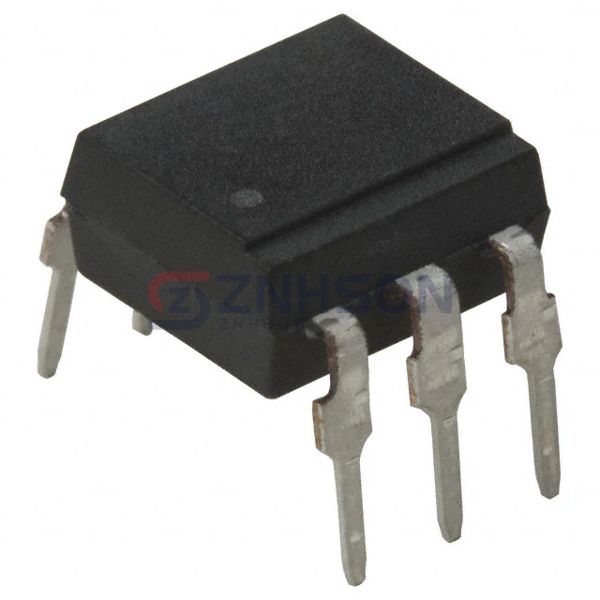

4N46-000E
Broadcom Limited
Broadcom Limited
OPTOISO 3.75KV DARL W/BASE 6DIP
$3.41
Available to order
Reference Price (USD)
1+
$3.43000
10+
$3.03700
25+
$2.25320
100+
$1.95940
250+
$1.76348
500+
$1.56752
1,000+
$1.34709
2,500+
$1.27361
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure optimal performance in your electronic designs with 4N46-000E Optoisolators from Broadcom Limited. Featuring Photovoltaic Output, these isolators are ideal for applications in automotive, IoT, and smart grid systems, offering high-speed signal transmission and robust isolation. Backed by Broadcom Limited's expertise, these components are a smart investment for any project. Contact us today to discuss your requirements and receive a tailored quote!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 3750Vrms
- Current Transfer Ratio (Min): 200% @ 10mA
- Current Transfer Ratio (Max): 1000% @ 10mA
- Turn On / Turn Off Time (Typ): 5µs, 150µs
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Darlington with Base
- Voltage - Output (Max): 20V
- Current - Output / Channel: 60mA
- Voltage - Forward (Vf) (Typ): 1.4V
- Current - DC Forward (If) (Max): 20 mA
- Vce Saturation (Max): -
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Through Hole
- Package / Case: 6-DIP (0.300", 7.62mm)
- Supplier Device Package: 6-DIP
Related Products
Renesas Electronics America Inc
PS2501-4-A
Everlight Electronics Co Ltd
EL3H7(D)(TA)-VG
Everlight Electronics Co Ltd
EL816(A)-V
Isocom Components 2004 LTD
ISP817AX
Broadcom Limited
HCPL-2531#320
Isocom Components 2004 LTD
4N26X
Vishay Semiconductor Opto Division

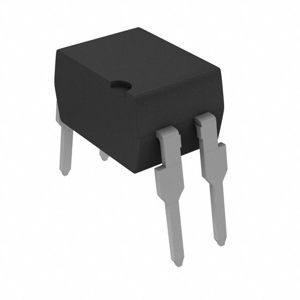

VO618A-4
