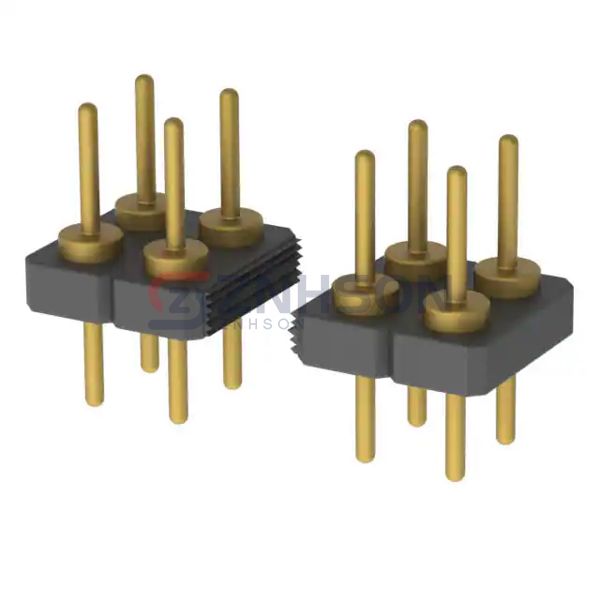

435-10-216-00-160000

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 16
• Number of Rows: 2
• Row Spacing - Mating: 0.100" (2.54mm)
• Number of Positions Loaded: All
• Style: Board to Board
• Shrouding: Unshrouded
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.125" (3.18mm)
• Contact Length - Post: 0.104" (2.64mm)
• Overall Contact Length: 0.299" (7.60mm)
• Insulation Height: 0.050" (1.27mm)
• Contact Shape: Circular
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 10.0µin (0.25µm)
• Contact Finish - Post: Gold
• Contact Material: Brass Alloy
• Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
• Features: -
• Operating Temperature: -
• Ingress Protection: -
• Material Flammability Rating: -
• Insulation Color: Black
• Current Rating (Amps): -
• Voltage Rating: -
