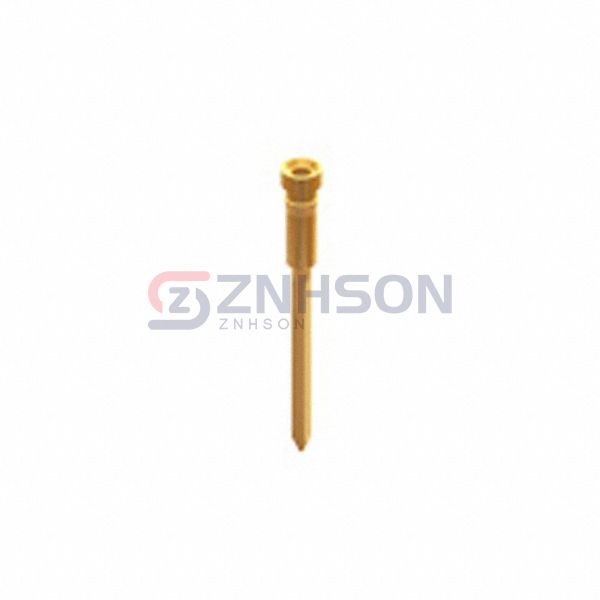

3506
Keystone Electronics
Keystone Electronics
CONN PIN RCPT .015-.025 PRESSFIT
$0.00
Available to order
Reference Price (USD)
100+
$0.36370
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Trust 3506 from Keystone Electronics for all your Connectors, Interconnects needs. Our Terminals - PC Pin Receptacles, Socket Connectors deliver unmatched quality and reliability. Key features include precision engineering, multi-pin configurations, and long service life. Suitable for medical devices, military equipment, and data centers. Get in touch with us now to explore our product range and place your order.
Specifications
- Product Status: Active
- Tail Type: Standard Tail
- Termination: Press-Fit
- Length - Overall: 0.703" (17.86mm)
- Accepts Pin Diameter: 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
- Accepts Square Pin Size: -
- Pin Hole Diameter: -
- Mounting Hole Diameter: 0.055" (1.40mm)
- Flange Diameter: 0.072" (1.83mm)
- Tail Diameter: 0.025" (0.64mm) Square
- Socket Depth: 0.160" (4.06mm)
- Contact Material: Beryllium Copper
- Contact Finish: Tin-Lead
- Contact Finish Thickness: 200.0µin (5.08µm)
