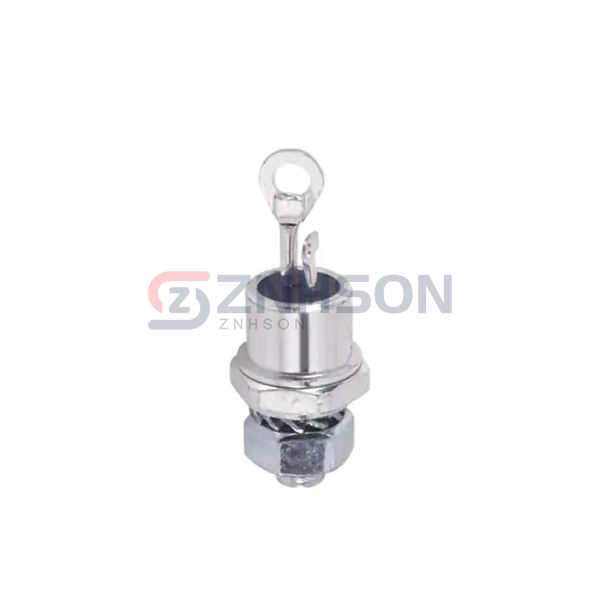

2N685
Solid State Inc.
Solid State Inc.
TO 48 25 AMP SCR
$6.50
Available to order
Reference Price (USD)
1+
$6.50000
500+
$6.435
1000+
$6.37
1500+
$6.305
2000+
$6.24
2500+
$6.175
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality 2N685 Thyristors - SCRs from Solid State Inc., designed for reliable performance in various electronic applications. Our SCRs feature robust construction, excellent thermal stability, and high surge current capability, making them ideal for power control, motor drives, and industrial equipment. Whether you need components for switching or phase control, Solid State Inc.'s 2N685 delivers consistent performance. Contact us today for a quote and let our experts assist you with your specific requirements.
Specifications
- Product Status: Active
- Voltage - Off State: 200 V
- Voltage - Gate Trigger (Vgt) (Max): 2 V
- Current - Gate Trigger (Igt) (Max): 40 mA
- Voltage - On State (Vtm) (Max): 2 V
- Current - On State (It (AV)) (Max): 16 A
- Current - On State (It (RMS)) (Max): 25 A
- Current - Hold (Ih) (Max): 50 mA
- Current - Off State (Max): 2 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 150A @ 60Hz
- SCR Type: Standard Recovery
- Operating Temperature: -65°C ~ 125°C (TJ)
- Mounting Type: Stud Mount
- Package / Case: TO-208AA, TO-48-3, Stud
- Supplier Device Package: TO-48
