292228-6
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

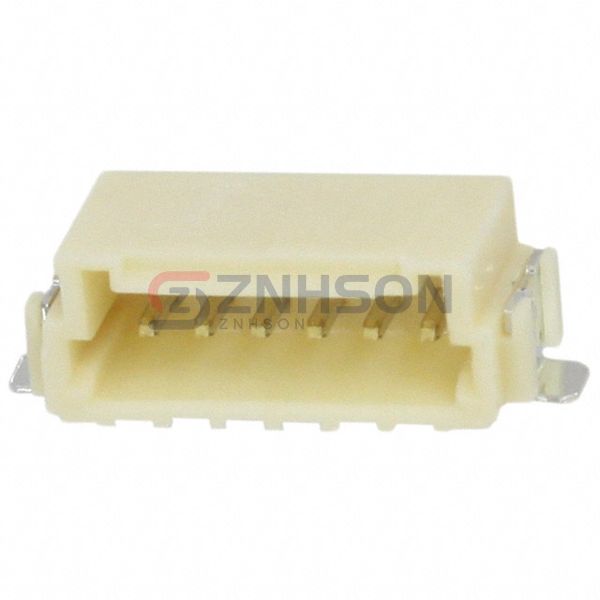

CONN HEADER SMD R/A 6POS 1.5MM
$0.71
Available to order
Reference Price (USD)
700+
$0.47097
1,400+
$0.39604
2,100+
$0.38534
3,500+
$0.36394
4,900+
$0.35323
17,500+
$0.32754
35,000+
$0.32112
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with 292228-6 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.094" (2.40mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.193" (4.90mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T, Glass Filled
- Features: Solder Retention
- Operating Temperature: -30°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Beige
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 50VAC
