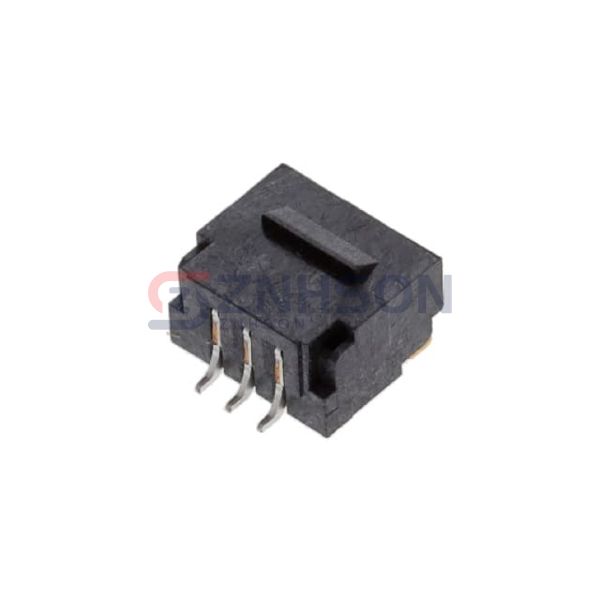

2367196-3

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.039" (1.00mm)
• Number of Positions: 3
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Surface Mount, Right Angle
• Termination: Solder
• Fastening Type: Locking Ramp
• Contact Length - Mating: 0.087" (2.21mm)
• Contact Length - Post: -
• Overall Contact Length: -
• Insulation Height: 0.114" (2.90mm)
• Contact Shape: Rectangular
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: 5.00µin (0.127µm)
• Contact Finish - Post: Tin
• Contact Material: Copper Alloy
• Insulation Material: Thermoplastic, Halogen Free
• Features: Pick and Place, Solder Retention
• Operating Temperature: -40°C ~ 85°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 2A
• Voltage Rating: 50V
