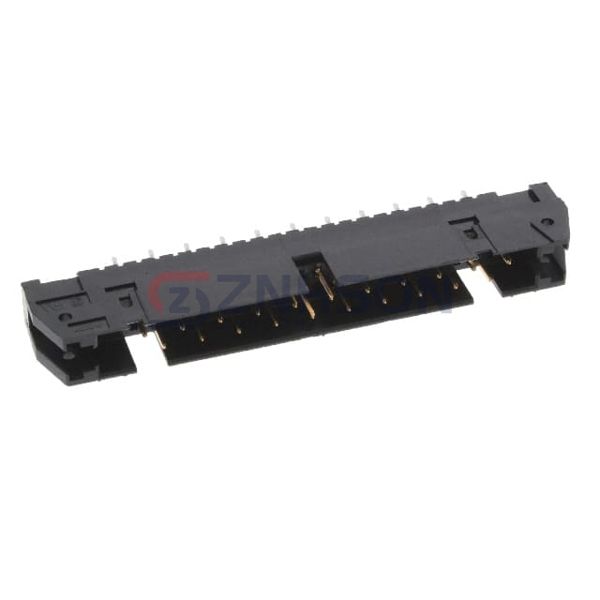

2169791-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 44POS 2.54MM
$6.12
Available to order
Reference Price (USD)
1+
$4.60000
10+
$4.42800
40+
$4.08700
80+
$3.91700
120+
$3.74658
280+
$3.32086
520+
$3.23571
1,000+
$2.80996
2,520+
$2.63967
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2169791-1 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the TE Connectivity AMP Connectors difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 44
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: 21
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.174" (4.42mm)
- Overall Contact Length: 0.703" (17.86mm)
- Insulation Height: 0.549" (13.94mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: -
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC
Related Products
Samtec Inc.
IPBT-110-H2-T-D-K
Samtec Inc.
FTS-132-01-L-DV-A-P-TR
METZ CONNECT USA Inc.
PM20B06VBNN
JST Sales America Inc.
B02B-ZESK-1D(T)(LF)(SN)(N)
Sullins Connector Solutions
PRPC018SBCN-M71RC
Samtec Inc.
TSM-105-01-S-DH-A-K-TR
Preci-Dip

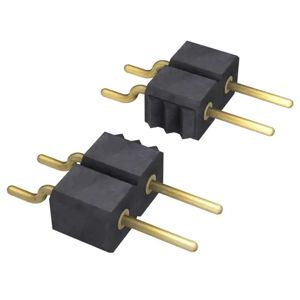

800-10-056-40-001101
Würth Elektronik

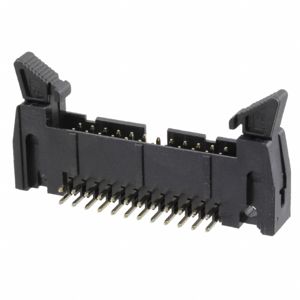

61202422121
Samtec Inc.

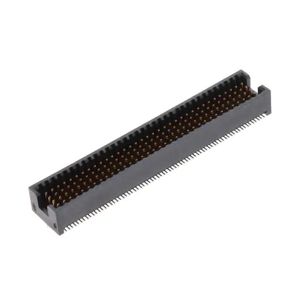

MOLC-135-02-S-Q-LC
