2122100060
Molex
Molex
CP-3.3 W/B HDR ASSY DR ST DIP NA
$2.21
Available to order
Reference Price (USD)
1+
$2.21000
500+
$2.1879
1000+
$2.1658
1500+
$2.1437
2000+
$2.1216
2500+
$2.0995
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

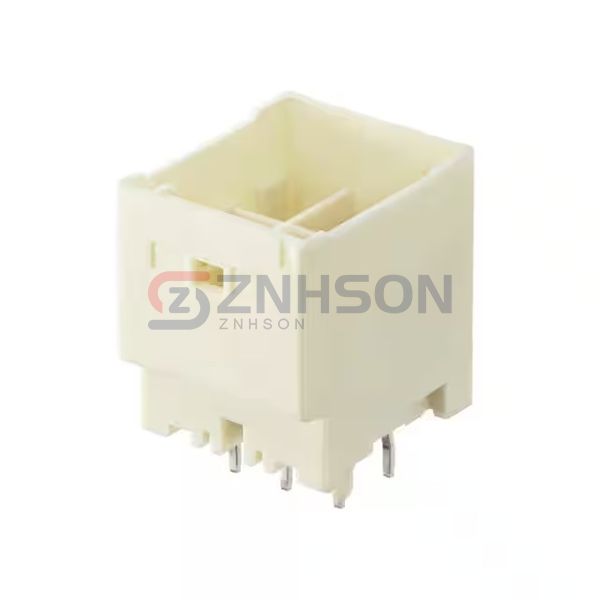

The 2122100060 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.130" (3.30mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.163" (4.14mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.132" (3.35mm)
- Overall Contact Length: -
- Insulation Height: 0.549" (13.94mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Board Guide, Glow Wire Compliant
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 500VAC/DC
Related Products
Mill-Max Manufacturing Corp.
800-10-001-10-002000
Samtec Inc.
ZSS-125-02-G-D-540-01
Samtec Inc.
FTE-110-01-G-DH-K
Samtec Inc.
FTSH-150-01-S-D
Amphenol ICC (FCI)

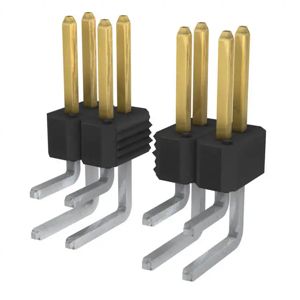

77317-803-40LF
TE Connectivity AMP Connectors

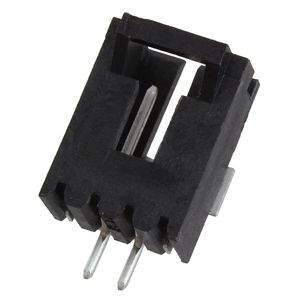

5-147324-1
Sullins Connector Solutions

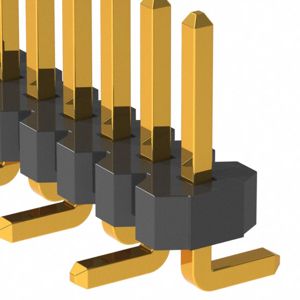

GRPB261VWTD-RC
Molex

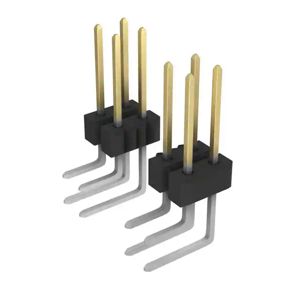

0717640414
