2121340003
Molex
Molex
PICO-EZMATE PLUS1.0 PLUGASSY ETP
$0.79
Available to order
Reference Price (USD)
1+
$0.79000
500+
$0.7821
1000+
$0.7742
1500+
$0.7663
2000+
$0.7584
2500+
$0.7505
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

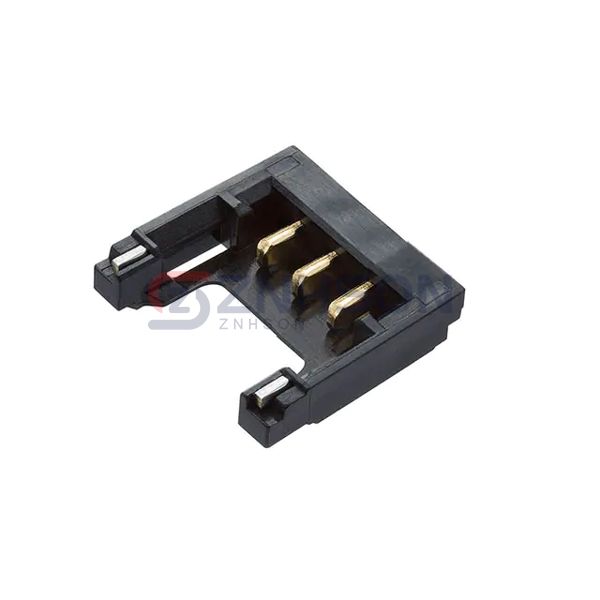

The 2121340003 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Plug
- Contact Type: Tab
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.047" (1.20mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.94µin (0.100µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 50VAC/DC
