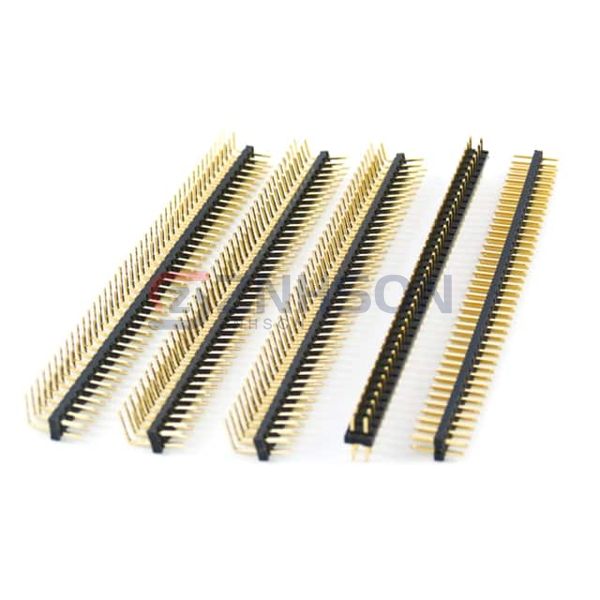

2111-2X07G00SB
Oupiin
Oupiin
PIN HEADER, DOUBLE ROW, 14 PIN,
$0.29
Available to order
Reference Price (USD)
1+
$0.29000
500+
$0.2871
1000+
$0.2842
1500+
$0.2813
2000+
$0.2784
2500+
$0.2755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2111-2X07G00SB Oupiin Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.146" (3.70mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.323" (8.20mm)
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 125V
Related Products
Mill-Max Manufacturing Corp.
435-90-208-00-160000
Amphenol ICC (FCI)
77311-127-36LF
Samtec Inc.
FTSH-114-02-F-D-RA
TE Connectivity AMP Connectors
9-146253-0-34
TE Connectivity AMP Connectors
4-521755-2
Samtec Inc.
TSM-107-01-S-DV-001-TR
Samtec Inc.
FTE-110-02-G-DH
Samtec Inc.

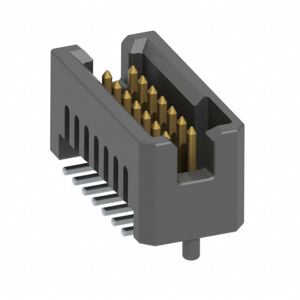

TFM-107-02-S-D-A-P
