2074780005
Molex
Molex

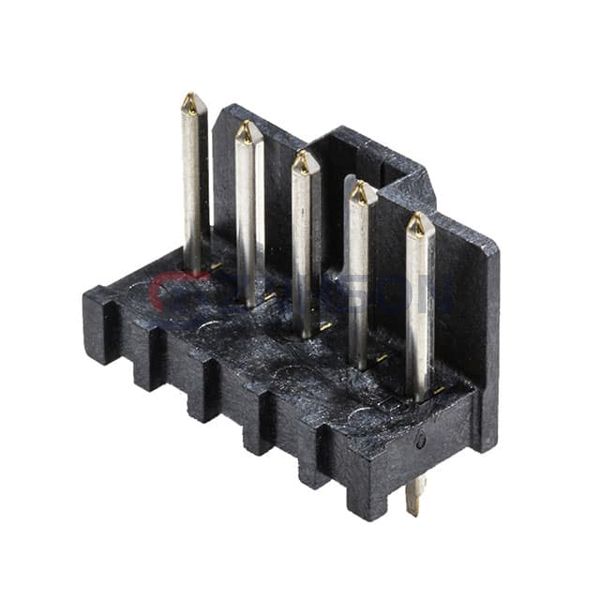

CONN HEADER VERT 5POS 3.96MM
$0.66
Available to order
Reference Price (USD)
1+
$0.66000
500+
$0.6534
1000+
$0.6468
1500+
$0.6402
2000+
$0.6336
2500+
$0.627
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2074780005 Molex Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Molex difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: 0.693" (17.60mm)
- Insulation Height: 0.476" (12.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Glow Wire Compliant
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 350V
