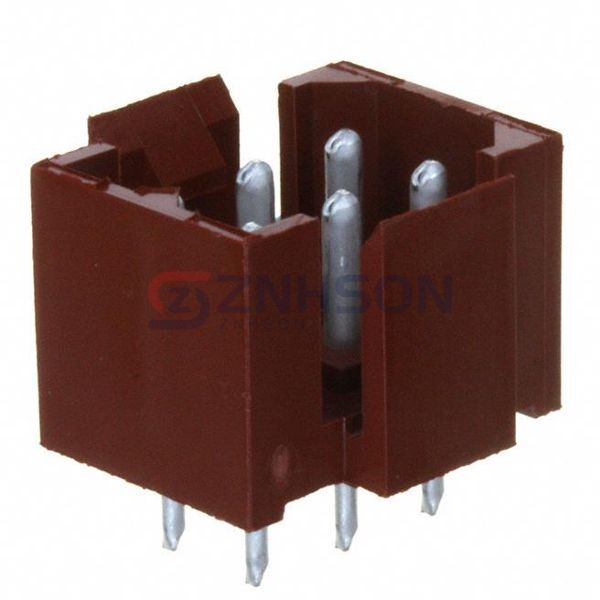

207158-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 6POS 5MM
$5.27
Available to order
Reference Price (USD)
1+
$5.66000
10+
$5.43700
100+
$4.53120
500+
$3.85154
1,000+
$3.28513
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 207158-2 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Obsolete
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.197" (5.00mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.197" (5.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.181" (4.60mm)
- Overall Contact Length: -
- Insulation Height: 0.464" (11.79mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 150.0µin (3.81µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -55°C ~ 130°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black, Red
- Current Rating (Amps): 7.5A
- Voltage Rating: 600V
Related Products
Samtec Inc.
FTM-109-03-L-DV-P-TR
Preci-Dip
353-10-148-00-001101
Mill-Max Manufacturing Corp.
850-40-020-20-001000
Samtec Inc.
EHF-125-01-L-D-SM-50
Samtec Inc.
TSW-105-09-S-S
Preci-Dip

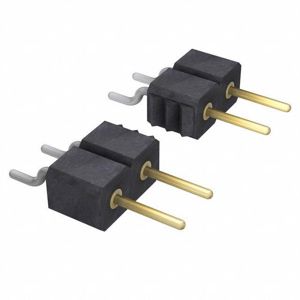

800-V3-027-40-001101
Harwin Inc.

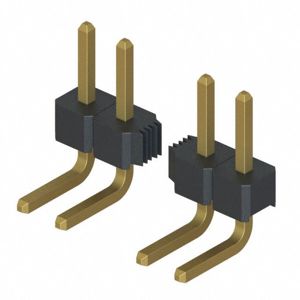

M22-2031005
