2068322201
Molex
Molex
CONN HEADER VERT 22POS 3MM
$5.63
Available to order
Reference Price (USD)
1+
$5.63000
500+
$5.5737
1000+
$5.5174
1500+
$5.4611
2000+
$5.4048
2500+
$5.3485
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2068322201 Molex Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 22
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Guide, Glow Wire Compliant
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 12.5A per Contact
- Voltage Rating: 600VAC/DC
Related Products
TE Connectivity AMP Connectors
1-2040557-9
JST Sales America Inc.
BM08B-NSHSS-TBT(LF)(SN)
Hirose Electric Co Ltd
DF5A-5P-5DSA(35)
TE Connectivity AMP Connectors
350210-1
Preci-Dip
350-80-164-01-899101
TE Connectivity AMP Connectors
5-1775444-9
Preci-Dip
350-10-124-00-106101
Samtec Inc.

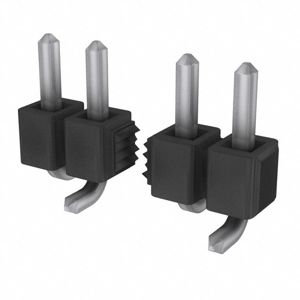

TSM-111-04-T-SV
Samtec Inc.

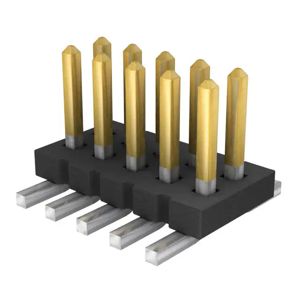

FTS-105-01-S-DV-P
