20021221-00008C4LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

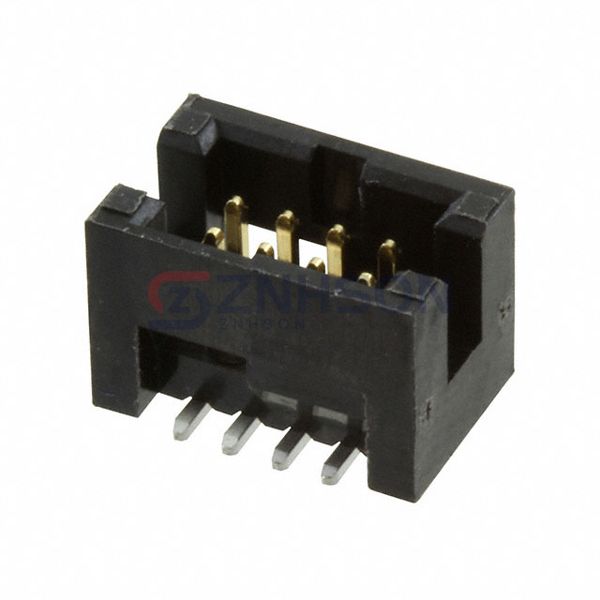

CONN HEADER SMD 8POS 1.27MM
$1.30
Available to order
Reference Price (USD)
500+
$0.50580
1,000+
$0.45522
1,500+
$0.41729
2,500+
$0.38694
5,000+
$0.37935
12,500+
$0.36670
25,000+
$0.36038
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 20021221-00008C4LF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 125VAC
