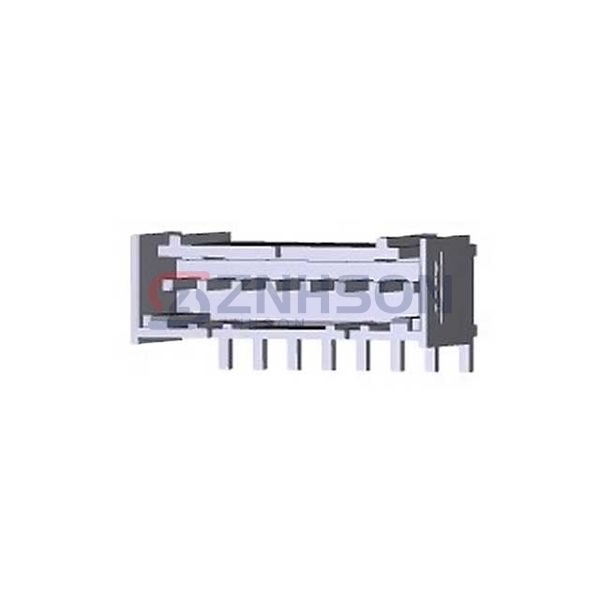

2-647125-8

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.156" (3.96mm)
• Number of Positions: 8
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Fastening Type: Friction Lock
• Contact Length - Mating: 0.300" (7.62mm)
• Contact Length - Post: 0.125" (3.18mm)
• Overall Contact Length: -
• Insulation Height: 0.455" (11.56mm)
• Contact Shape: Square
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: 150.0µin (3.81µm)
• Contact Finish - Post: Tin
• Contact Material: Copper Alloy
• Insulation Material: Thermoplastic, Glass Filled
• Features: -
• Operating Temperature: -55°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): Varies by Wire Gauge
• Voltage Rating: 600VAC
