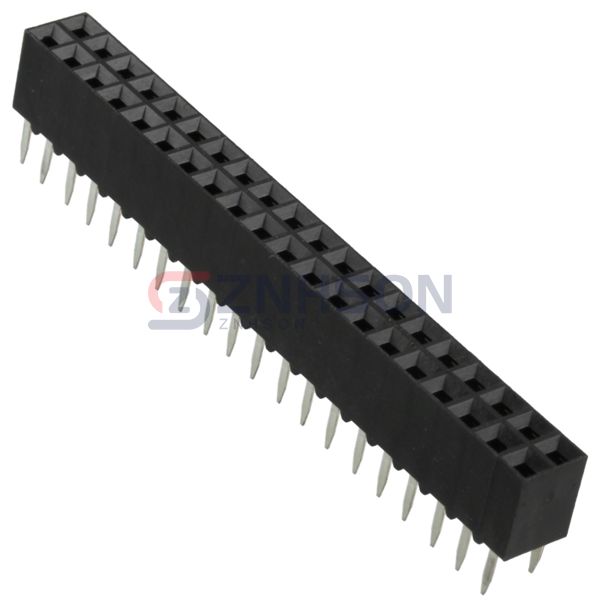

2-535542-0

Specifications

• Product Status: Active
• Connector Type: Receptacle, Bottom or Top Entry
• Contact Type: Female Socket
• Style: Board to Board or Cable
• Number of Positions: 40
• Number of Positions Loaded: All
• Pitch - Mating: 0.100" (2.54mm)
• Number of Rows: 2
• Row Spacing - Mating: 0.100" (2.54mm)
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 30.0µin (0.76µm)
• Insulation Color: Black
• Insulation Height: 0.265" (6.73mm)
• Contact Length - Post: 0.130" (3.30mm)
• Operating Temperature: -65°C ~ 125°C
• Material Flammability Rating: -
• Contact Finish - Post: Tin-Lead
• Mated Stacking Heights: -
• Ingress Protection: -
• Features: -
• Current Rating (Amps): 2A
• Voltage Rating: -
