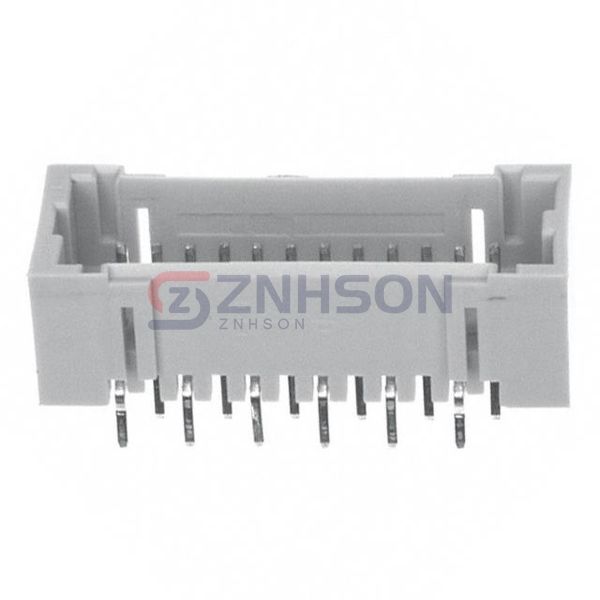

2-292208-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 24POS 1.5MM
$2.29
Available to order
Reference Price (USD)
1+
$1.79000
10+
$1.63800
100+
$1.42120
600+
$1.20492
1,200+
$1.05043
5,400+
$0.94539
10,200+
$0.92685
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2-292208-4 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the TE Connectivity AMP Connectors difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.114" (2.90mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.291" (7.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Board Guide
- Operating Temperature: -30°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 50VAC
Related Products
Preci-Dip
852-80-042-10-001101
Samtec Inc.
TSM-116-01-TM-SV-A
Samtec Inc.
HTSW-140-06-G-S
HARTING
09185505912
Preci-Dip
351-80-125-00-016101
Samtec Inc.
TFC-104-02-L-D
Samtec Inc.
TSW-137-08-S-S-RA

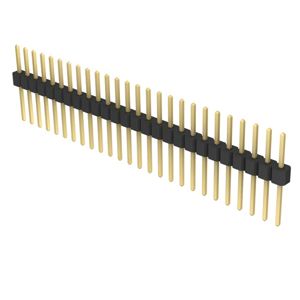

Sullins Connector Solutions
