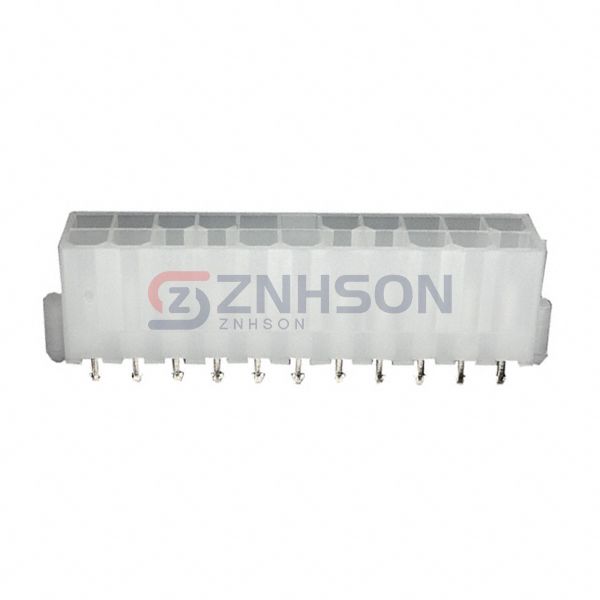

2-1586039-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 22POS 4.2MM
$1.50
Available to order
Reference Price (USD)
1+
$1.36000
10+
$1.20500
105+
$1.05152
525+
$0.87623
1,050+
$0.78862
5,040+
$0.70099
10,080+
$0.67032
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2-1586039-2 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 22
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.504" (12.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 80.0µin (2.03µm)
- Contact Finish - Post: Tin
- Contact Material: Brass Alloy
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Natural
- Current Rating (Amps): 9A
- Voltage Rating: 600VAC
Related Products
Molex
0440680046
Hirose Electric Co Ltd
DF3-11P-2DSA(01)
Amphenol ICC (FCI)
77311-102-27LF
Amphenol ICC (FCI)
75160-802-04LF
Amphenol Sine Systems Corp
ATP04-6P-BM04
Samtec Inc.
FTM-136-03-F-DV
Samtec Inc.
TMM-105-05-T-D-SM
Samtec Inc.

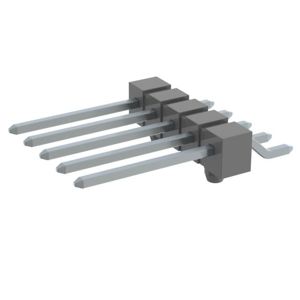

TSM-105-03-T-SH-A-P
