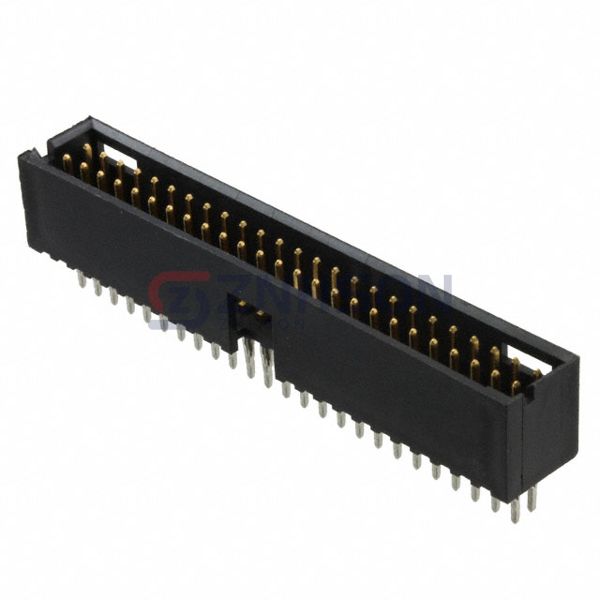

2-102699-3

Specifications

• Product Status: Discontinued at Digi-Key
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 50
• Number of Rows: 2
• Row Spacing - Mating: 0.100" (2.54mm)
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Press-Fit, Solder
• Fastening Type: Detent Lock
• Contact Length - Mating: 0.320" (8.13mm)
• Contact Length - Post: 0.250" (6.35mm)
• Overall Contact Length: 0.660" (16.76mm)
• Insulation Height: 0.440" (11.18mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 30.0µin (0.76µm)
• Contact Finish - Post: Tin-Lead
• Contact Material: Copper Alloy
• Insulation Material: Thermoplastic
• Features: -
• Operating Temperature: -55°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 3A
• Voltage Rating: -
